A few design iterations later, we are pleased to present our mark II cockpit design: https://youtu.be/IxNZhYH402E
Features include:
Large primary flight display
Smart keypad with physical keys and hand rest
Circuit breaker panel matching device locations
Split-screen multi function display
Aerodrome information from ATIS
Smart checklists
Spherical attitude indicator
Info dot for airspeed, RPM, G-force, and altitude. Also serves as angle of attack and slip indicator
Info line for ATC calls
Electronic flight bag connectivity through GDL90 over WiFi including attitude and heading reference system
Electrical cabling fully integrated with panel
Synchronized and fully redundant system (front and rear cockpit) with hot-failover

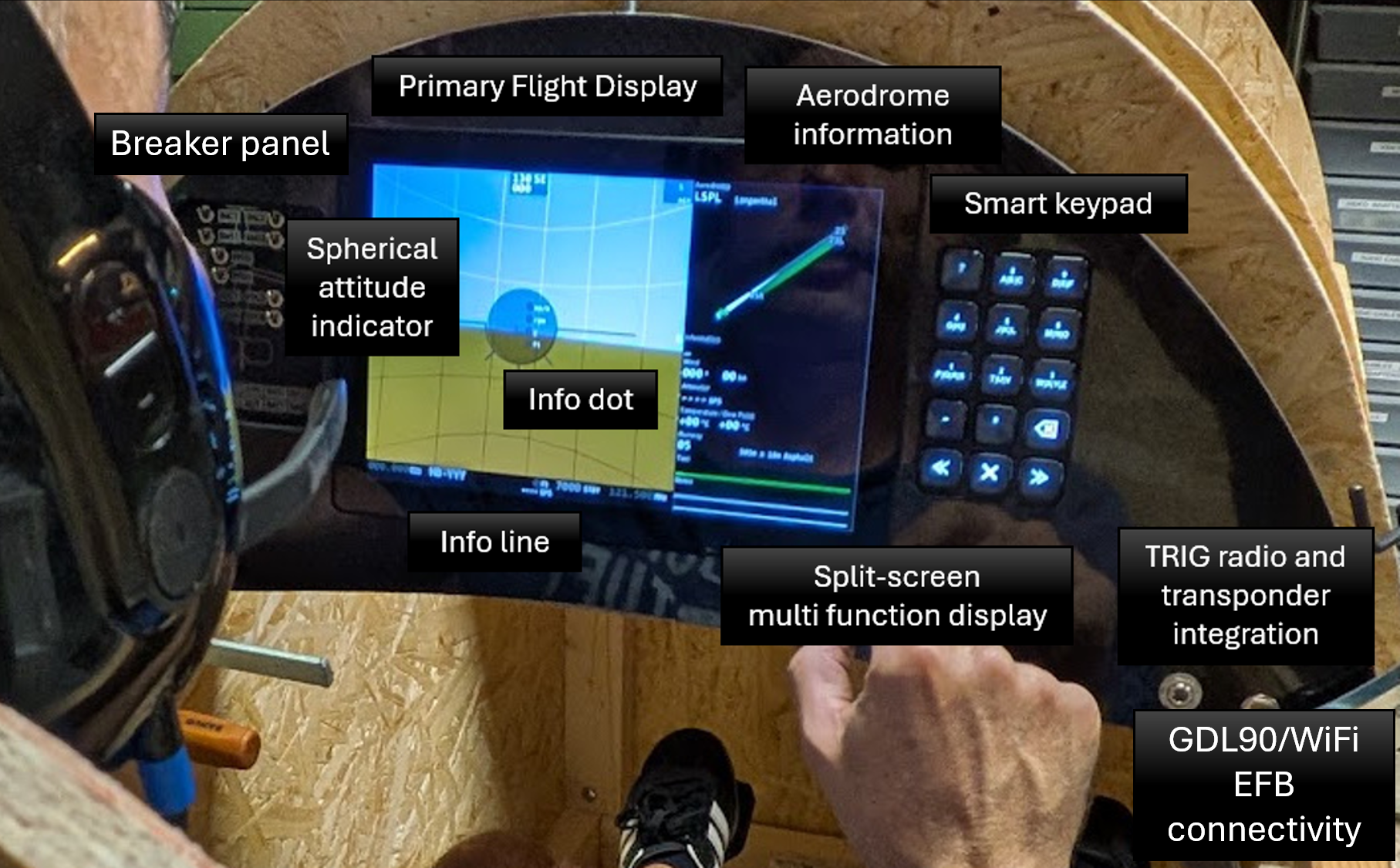

Bücker Jungmann cockpit mock-up with some of our LIFD mark II features

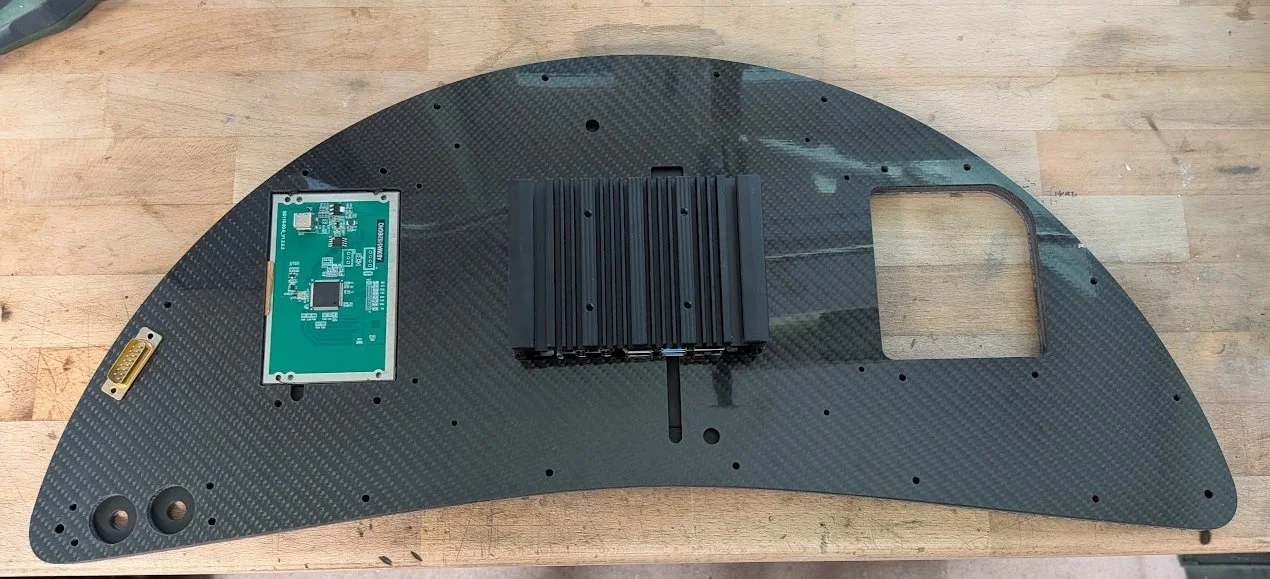

The rear of our cockpit panel - all electrical wires run between the two carbon-fiber sheets in a layer of hard-foam. The only external connection is the D-SUB 15 LIFD port seen on the left. Thanks GO to Hagenbuch Hydraulic Systems for their build support.
